CAT engines used in the UAE construction, mining, transport, and power generation work hard and work long. A C15 running a generator through summer in an industrial facility in Sharjah doesn’t get the downtime that a machine on a seasonal project might. A 3406E on a tipper truck covering long hauls between Abu Dhabi and Dubai accumulates hours, accelerating wear on every internal component. At some point, the engine tells you it needs attention through oil consumption, compression loss, blow-by, dropping power, or a combination of all four. When that point arrives, the decision is whether to treat individual symptoms or go into the engine properly with a full overhaul. A CAT piston isn’t something you replace in isolation without understanding what surrounds it, and getting the parts list right before the engine comes apart saves significant time, cost, and the risk of going back in twice.
In-Frame vs. Full Overhaul: What the Decision Actually Means?
These two terms come up whenever a CAT engine overhaul is discussed, and the difference affects the parts list significantly.
- In-frame overhaul means the engine stays in the machine. The cylinder head is removed, and internal components liners, pistons, rings, pins, and bearings are replaced without pulling the block. This is appropriate when the crankshaft, camshaft, and block itself are within specification and the wear is concentrated in the upper end and cylinder bores.
- Full overhaul involves removing the engine from the machine and disassembling it completely. This is the correct route when crankshaft journals are worn beyond spec, the block has damage, or the engine has suffered a catastrophic failure spun bearing, cracked piston, ingested debris.

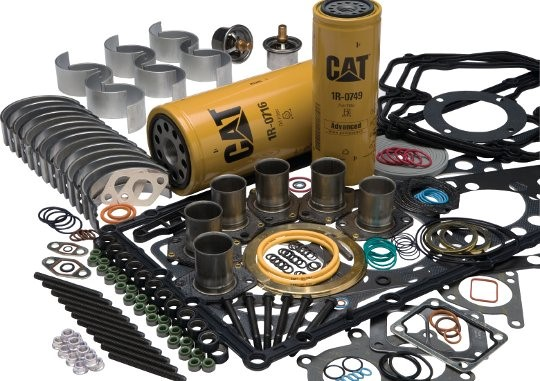

The Parts a CAT Engine Overhaul Actually Requires
A complete in-frame overhaul on a CAT engine covers the following components. Every one of these needs to be addressed skipping any of them defeats the purpose of going into the engine at all.
Cylinder Liners
Liners are the bores the pistons travel in. On CAT engines, these are wet liners they sit directly in contact with coolant on their outer surface, which affects sealing. Induction-hardened liners are the standard for overhaul work, and the O-ring seals at the liner base are critical liner O-ring failure is a direct path to coolant contamination of the oil. On the 3406E and C15, roll-burnished flange radius increases flange strength and resistance to cracking at the seating surface.
CAT Piston
The CAT piston is the component that takes the most abuse in the combustion cycle. On the C15 and 3406E, two piston configurations exist:
- 2-piece piston (part number 1807352) the original design, with a steel crown and aluminium skirt. The steel crown handles combustion heat and pressure; the aluminium skirt provides low friction against the liner wall.
- 1-piece steel piston an upgrade option that some operators specify at overhaul. The 1-piece steel CAT piston has the same 16.6:1 compression ratio as the original 2-piece design and requires no engine modifications. It uses a shorter piston pin to accommodate the single-piece construction.
Genuine CAT pistons feature graphite skirt coating for improved seizure resistance and computer-controlled machining to maintain correct clearances to the liner. The CAT piston crown geometry is engine-model specific a piston from a C15 is not the same as one from a C13 or C7, even if the physical diameter looks similar. Always source by engine serial number, not by visual match.
Piston Rings
Piston rings do two jobs sealing combustion gases above the piston crown, and controlling oil film on the liner wall below. Worn rings are the primary cause of oil consumption and blow-by on high-hour CAT engines. Rings are manufactured from alloy cast iron or steel depending on the ring position, with wear-resistant coatings on the ring face. They must be replaced whenever the liner and CAT piston are replaced reusing old rings in new liners accelerates wear on both.
Piston Pins and Retainers
The pin connects the piston to the connecting rod. On high-hour engines, pin bores in both the CAT piston and the small-end bearing of the connecting rod can show wear. Profiled piston pins on CAT engines are hardened and tempered to handle the cyclical load. If the connecting rod small-end bearing is worn, the rod needs attention at the same time a worn pin bore with a new pin and piston just moves the problem.
Main and Rod Bearings
Connecting rod bearings (big-end) and main crankshaft bearings are standard-fit components replaced at every overhaul regardless of visual condition. Bearing condition is a function of oil maintenance history engines that have had oil changes on schedule show significantly less bearing wear at teardown than those that haven’t.
Head Gasket Set
The cylinder head comes off for an in-frame overhaul, which means a full head gasket set goes back on. This includes the fire ring, water jacket seals, and all peripheral gaskets. On the C15 and 3406E, the head gasket is a multi-layer steel design it needs a clean, flat mating surface on both the head and block deck. A head that’s warped or pitted beyond spec needs surface grinding before the new gasket goes on.

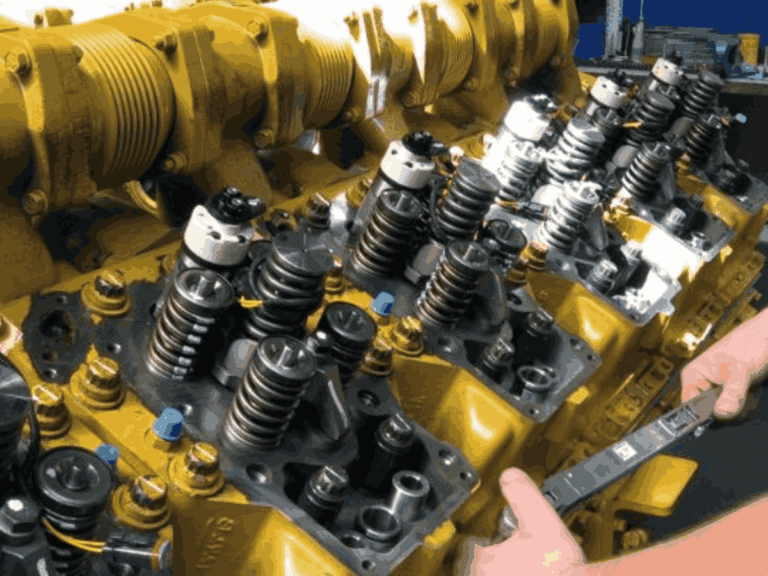

Valve Train Components
With the head removed, valve condition, seat wear, and stem seal condition are assessed. On engines with significant hours, valve stem seals are replaced as a matter of course. If valve guides are worn, they’re addressed now they can’t be done economically with the head back on.
Full Gasket and Seal Set
Every gasket and seal disturbed during the teardown gets replaced. Oil pan gasket, rocker cover gasket, injector O-rings, coolant seals these are low-cost items relative to the labour involved. Reusing them is false economy on an overhaul.
Final Take
A CAT engine overhaul done properly with the right parts restores an engine to the output and reliability it was built for. Cutting corners on component quality particularly on the CAT piston, liners, and bearings is the fastest way to end up back in the engine before the next overhaul interval. For fleet operators and workshop managers in the UAE sourcing parts for CAT engine overhauls, Al Burhan Spares on Caterpillar Road in Sharjah has the stock, the engine knowledge, and 30 years of experience in the CAT parts market to get the right component to the right job. Our team assists with part identification by engine model and serial number. Visit our website or get in touch with the team at +971 56 669 0325.
FAQs
What is the difference between an in-frame and a full engine overhaul?
An in-frame overhaul replaces internal wear components liners, pistons, rings, bearings with the engine remaining in the machine. A full overhaul involves complete engine removal and disassembly, including crankshaft and block inspection and reconditioning where needed.
What CAT piston options are available for C15 and 3406E engines?
Two configurations exist the original 2-piece piston (crown and skirt, part number 1807352) and a 1-piece steel upgrade. Both have a 16.6:1 compression ratio and are direct fitments requiring no engine modification.
Why must piston rings be replaced when fitting new liners?
New liners have a specific surface finish that allows rings to bed in correctly. Reusing old rings in new liners prevents proper bedding and accelerates wear on both components.
How does UAE climate affect CAT engine overhaul intervals?
High ambient temperatures increase thermal load on pistons and combustion components. Inconsistent air filtration maintenance allows dust ingestion that accelerates liner and ring wear. Both factors can bring overhaul intervals forward compared to manufacturer recommendations based on temperate-climate operation.
Can Al Burhan source CAT parts by engine serial number?
Yes. Al Burhan’s team identifies parts by engine model and serial number, which is the correct method for ensuring the right specification is supplied particularly for CAT pistons and liners where dimensions are model-specific.
