Pistons are what make diesel engines work. They turn combustion energy into mechanical motion while working in very harsh circumstances, like temperatures above 600°C and pressures over 200 bar. Pistons are built to last, yet they can still break, which can be very bad for the whole engine system.

Reasons Why Diesel Pistons Fail:

1. Scuffing and Seizing When the oil coating between the piston skirt and the cylinder wall breaks down, scuffing happens. In high-performance diesel engines, boundary lubrication can fail when the oil is of low quality, the engine gets too hot, or the cylinder pressure gets too high. The outcome is that metal touches metal, which quickly raises the temperature and friction, which eventually causes seizure.Technical Insight: Diesel pistons usually have stricter tolerances than petrol pistons to deal with thermal expansion. To avoid scuffing, the oil must be of the proper viscosity and quality.
2. Cracking Piston crown cracking happens most often in turbocharged diesel engines since they have to deal with a lot of heat and stress. Hot spots that start microcracks can occur when the cooling isn’t good enough, the detonation is off, or the injector spray is off. These get worse with each combustion cycle until the structure completely fails.
3. Ring Sticking Diesel engines make more soot and unburned hydrocarbons than petrol engines do. These byproducts settle in the ring grooves if they are not appropriately regulated by EGR, high-quality fuel, and clean combustion. Stuck rings don’t seal compression or scrape oil correctly, which makes the engine lose power and use more oil.

How to Keep Diesel Pistons from Breaking Down

• Regular Oil Changes = Proper Lubrication – Regular oil changes keep your engine lubricated. Diesel engine oil collects soot and acids. To keep the oil’s lubricity and film strength, change it according to the engine’s duty cycle and the OEM’s instructions.
• Use High-Quality Diesel Fuel – Fuels with a high cetane number burn better, build up less carbon, and keep injectors from getting dirty.
• Keep the cooling system in good shape – To keep the piston crown from getting too hot, use the OEM-specified coolant and service intervals. Check the performance of the EGR and intercooler on a frequent basis.
• Regular engine checks – Do blow-by tests, cylinder compression tests, and oil tests to find early symptoms of wear on the piston ring or skirt.

Design is Key

• Reinforced Ring Lands – Diesel pistons usually have anodised or reinforced lands to keep them from wearing out and changing the shape of the ring groove.

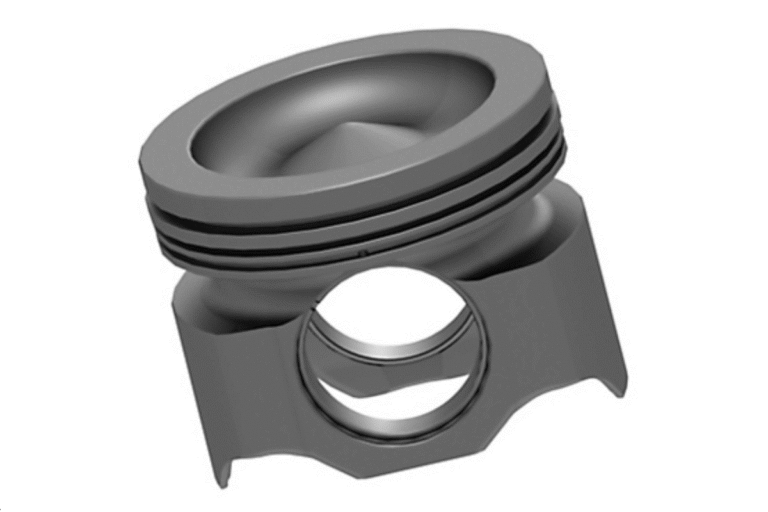

• Bowl-in-Piston Combustion Chamber – Built-in bowl forms improve swirl and the mixing of air and fuel. The design depends on the angle of the injector spray and the ratio of the bore to the stroke.
• Thermal Barrier Coatings – These are put on the crown to reflect heat from combustion and lower thermal fatigue.

Choosing the Right Material

Aluminum Alloy Pistons – Aluminium alloy pistons are often used in diesel engines that are mild or medium-duty. They are excellent at conducting heat, but in applications with a lot of weight, they may need steel insert carriers.

Forged Steel Pistons – Heavy-duty engines like the Cummins ISX, Caterpillar C15, or Detroit DD15 have forged steel pistons. They can take high combustion pressures better, but they need more precise manufacture and greater weight to balance them.

Conclusion

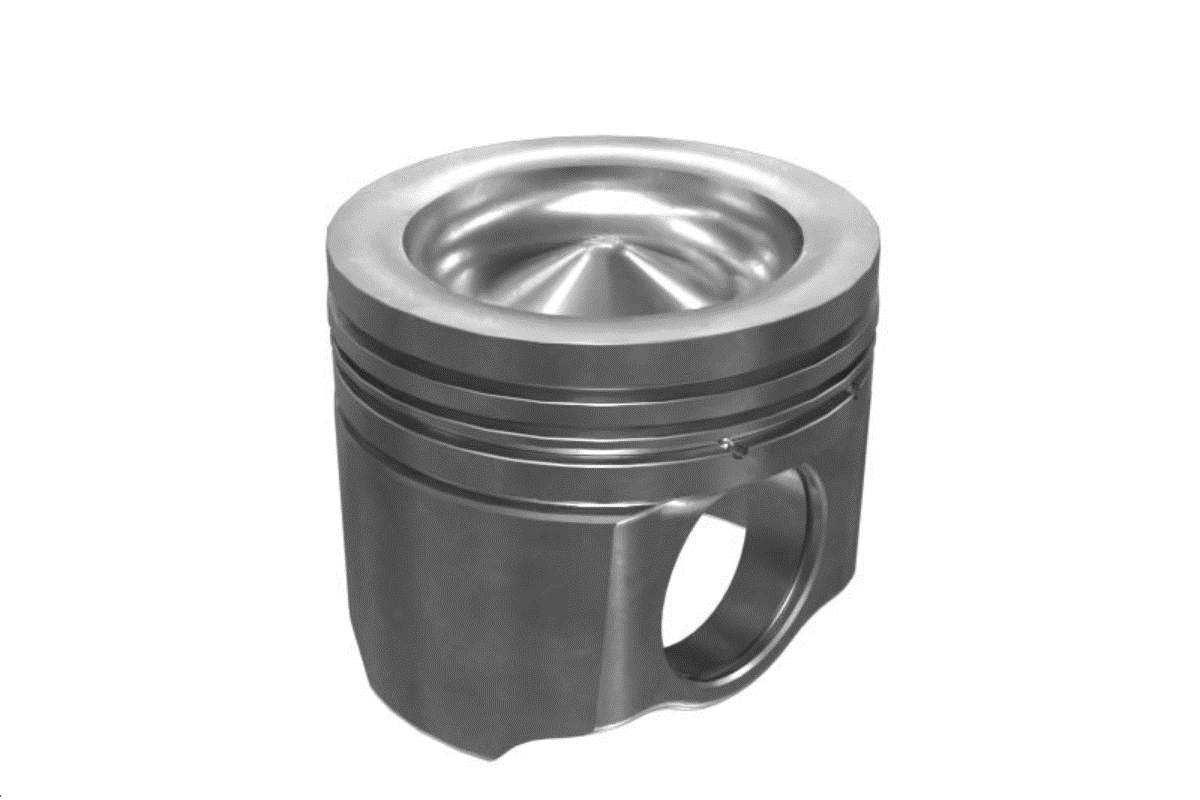

To achieve maximum engine performance and longevity, maintaining your diesel pistons—especially CAT pistons—in top condition is critical. At Rukn Al Burhan, we recognize that piston reliability goes beyond just using the right part—it’s about expert maintenance, smart diagnostics, and engineering insight.

Preventive measures like regular oil changes, high-quality diesel fuel, and a well-maintained cooling system all play a crucial role in avoiding costly piston failures. Monitoring engine parameters such as load, temperature, and boost helps catch issues early, especially in demanding applications where CAT pistons are commonly used.

Whether you operate a heavy-duty fleet, service industrial engines, or manage high-output diesel systems, Rukn Al Burhan is your trusted partner for premium components, including CAT piston replacements, OEM-grade parts, and technical support.

Modern diesel pistons are built for performance, but with the proper care and the support of Rukn Al Burhan, they’ll deliver lasting reliability and power.
